Mobile Ceramic Membrane Filtration Equipment

Water & Soil Water Quality Improvement / Water Management Technology Water Treatment Membrane

Technology / Service Summary

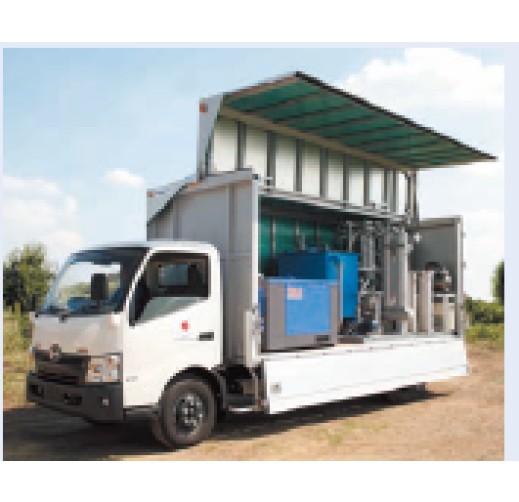

Mobile water purification system using ceramic membrane loaded onto a truck. It enables filtration of high turbidity raw water available in the event of disaster. No chemical to prevent deterioration in quality is required while storing ceramic membranes in a long period of time. Operation has no problem at places where there is no power source available, because a generator stands by in a truck.

Purpose

Filtration of raw water and supply of potable water to rural areas where there is no water purification plant as well as to areas suffering so much inconveniences due to a disaster such as flood, etc.

Feature

The characteristics of the system are as follows.
1)Ceramic membrane which has a longer life span over 15 years, can filtrate high turbidity raw water to remove protozoa such as cryptosporidium and bacteria such as E coli.
2)No chemical is required while storing ceramic membranes in a long period of time.
3)No sedimentation basin is required, therefore, configuration of the system becomes simple. The O&M is also simple because replacement of membrane does not happen for such a longer period of time.

Effect

The system can filtrate high turbidity raw water to supply the following volume of drinking water according to the number of membrane elements used.
One element system (ground water:1~4 m3/hr., surface water:1~2.5 m3/hr.)
Two elements system(ground water:2~8 m3/hr., surface water:2~5 m3/hr.)
Four elements system(ground water:4~16 m3/hr., surface water:4~10 m3/hr.)

Reference

Applicable Regions / Countries

  • Japan
  • Southeast Asia
  • Central/South Asia
  • China/ East Asia
  • Middle East
  • Africa
  • Oceania
  • Europe
  • Central/South America
  • ASEAN countries

    Indonesia,Cambodia,Singapore,Thailand,Philippines,Brunei Darussalam,Viet Nam,Malaysia,Myanmar,Lao PDR

Accomplishments

3 units to Malawi (delivered in January 2013)
2 units to Kenya (delivered in May 2013)
3 units to Togo (delivered in April 2014)
4 units to Lesotho (delivered in June 2014)
1unit to C?te d'Ivoire (delivered in January 2015)
1 unit to Cambodia (delivered in April 2014)
10 units to Myanmar (delivered in November 2017)
1 unit to Madagascar (delivered in January 2020)

Related SDGs Goals

  • 6. Clean Water and Sanitation
  • 11. Sustainable Cities and Communities
  • 17. Partnerships to achieve the Goal
