Maximize Sludge Utilization - Sludge drying with preheated raw meal

Technology / Service Summary

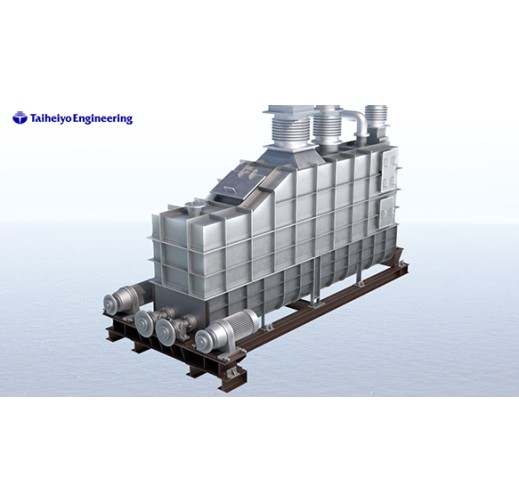

TTR® (Taiheiyo Thermal Reactor) System could minimize the impacts of the water content of sludge (Heat loss, Production loss and Unstable operation) with maximum sludge utilization.

Purpose

Sludge contains a large amount of water but, after drying, a considerable amount of combustible material and ash remains.
The cement industry can dispose of this harmlessly and safely using high temperature waste heat and simultaneously utilize not only the combustible material as fuel, but also the ash as raw material.
For the efficient utilization of sludge, Taiheiyo Engineering Corporation and Taiheiyo Cement Corporation have developed a breakthrough drying technology using the preheated raw meal.

Feature

1. Low investment cost / Less installation space
・Compact system can be made thanks to the high performance heat transfer.
T・his system can be installed with low investment cost, less space and short time, so it enables quick cost recovery.

2. Stable kiln operation / Least impact to clinker production
・From this system, dried powder is fed to the kiln.No adhesion or volume increase from moisture happens. This helps maintain the stable kiln operation. Comparing with direct (wet) sludge utilization system, clinker production reduction is almost eliminated.

3. Less energy consumption
・Since no moisture is fed to calciner (de-carbonation part), additional fuel consumption can be avoided. Also, heat value from sludge can be fully utilized.

4. Denitrification (De NOx) effect (Conversion to low cost fuel)
・The exhaust from sludge drying is brought to the outlet of bottom cyclone. Ammonia contained in sludge is utilized there as de-nitration agent. Further denitrification can be achieved by adding urea to the Reactor.

5. Safety
・The Reactor is designed not to introduce air (oxygen). Without concern for explosion, safe operation is secured.

Effect

TTR® System can treat 200t/d sludge with effective & efficient water content separation (Water content < 5%).
As the result, TTR® System could minimize the impacts of the water content of sludge (Heat loss, Production loss and Unstable operation) with maximum sludge utilization.
